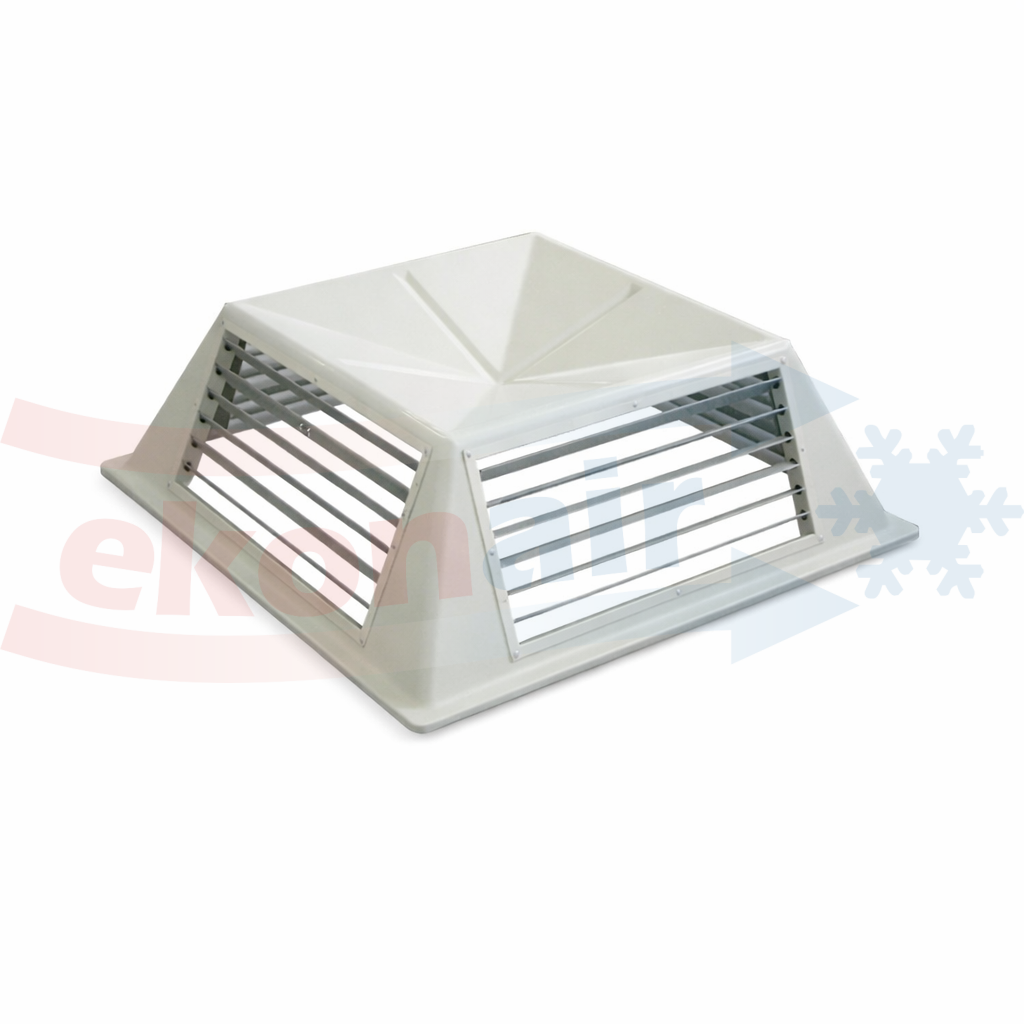

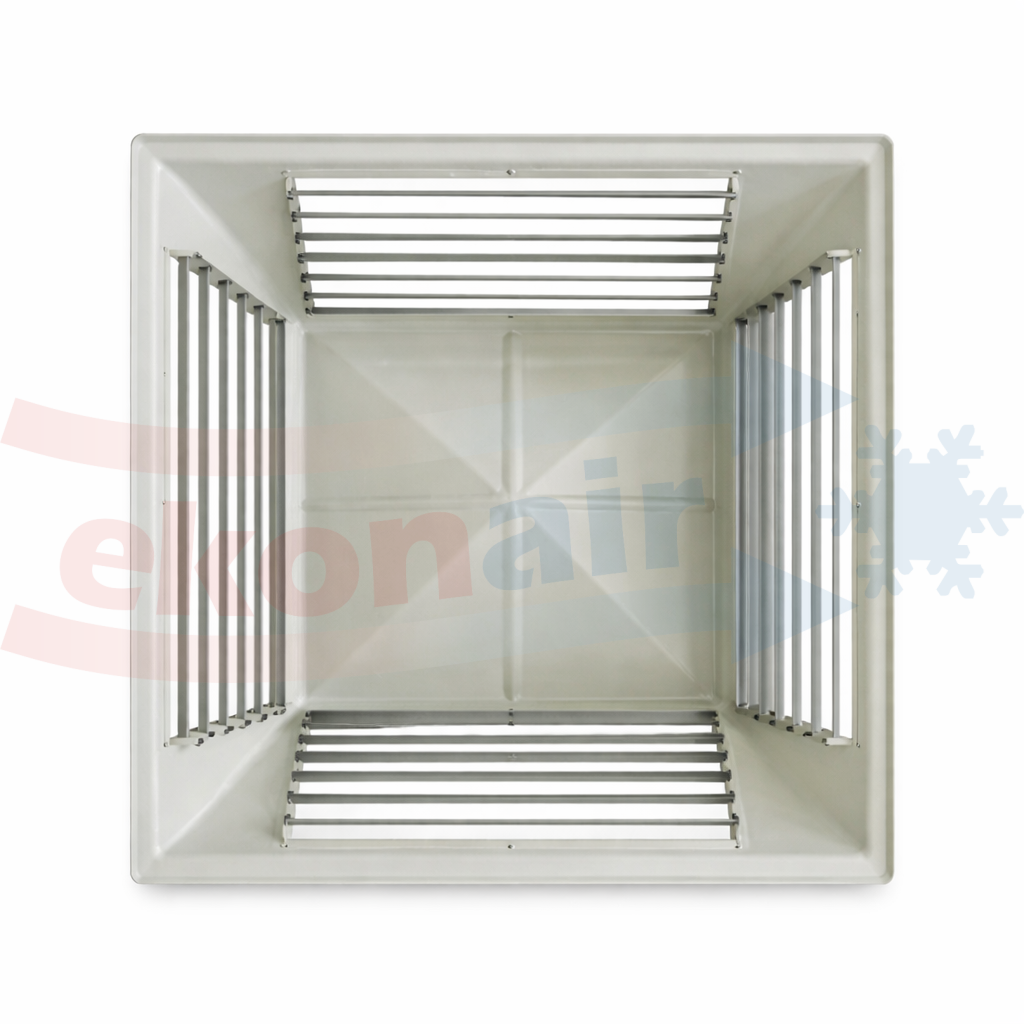

4-way ABS air diffuser chamber
Regular price:
Regular price:
product unavailable
add to wish list
Description
1. Air diffuser (expansion chamber) with air outlet on 4 sides serves as the end element of the ventilation duct for air distribution in ventilation systems.
2. Confusor (expansion chamber) made of ABS plastic .
3. The confusor rim (frame) is made of galvanized sheet metal .
4. The shutter ( blade) is made of aluminum , the adjustment of the shutters in the confusor is set manually in order to direct the air streams .

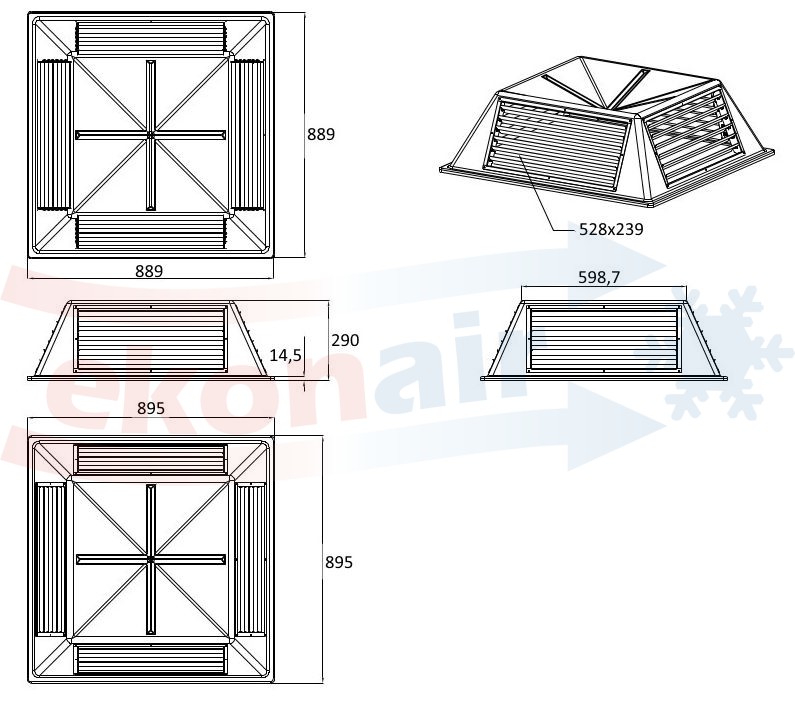

Dimensions of the outlet grille with blinds: 536x244mm (4 pcs.)
Max. external dimension: 895x895mm
Max. height: 290mm
Color: ivory
Material: ABS plastic
