8-way ABS air diffuser chamber
Regular price:
Regular price:
product unavailable
add to wish list
Description

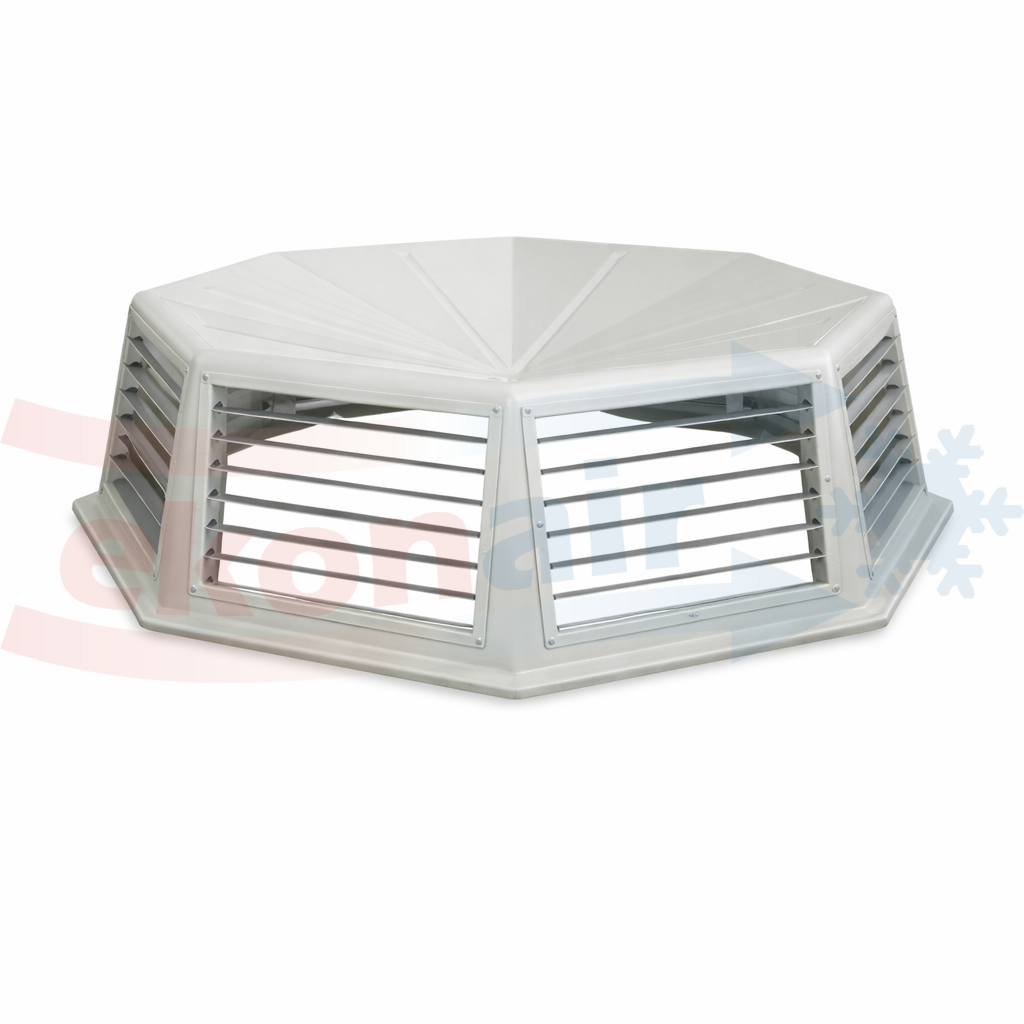

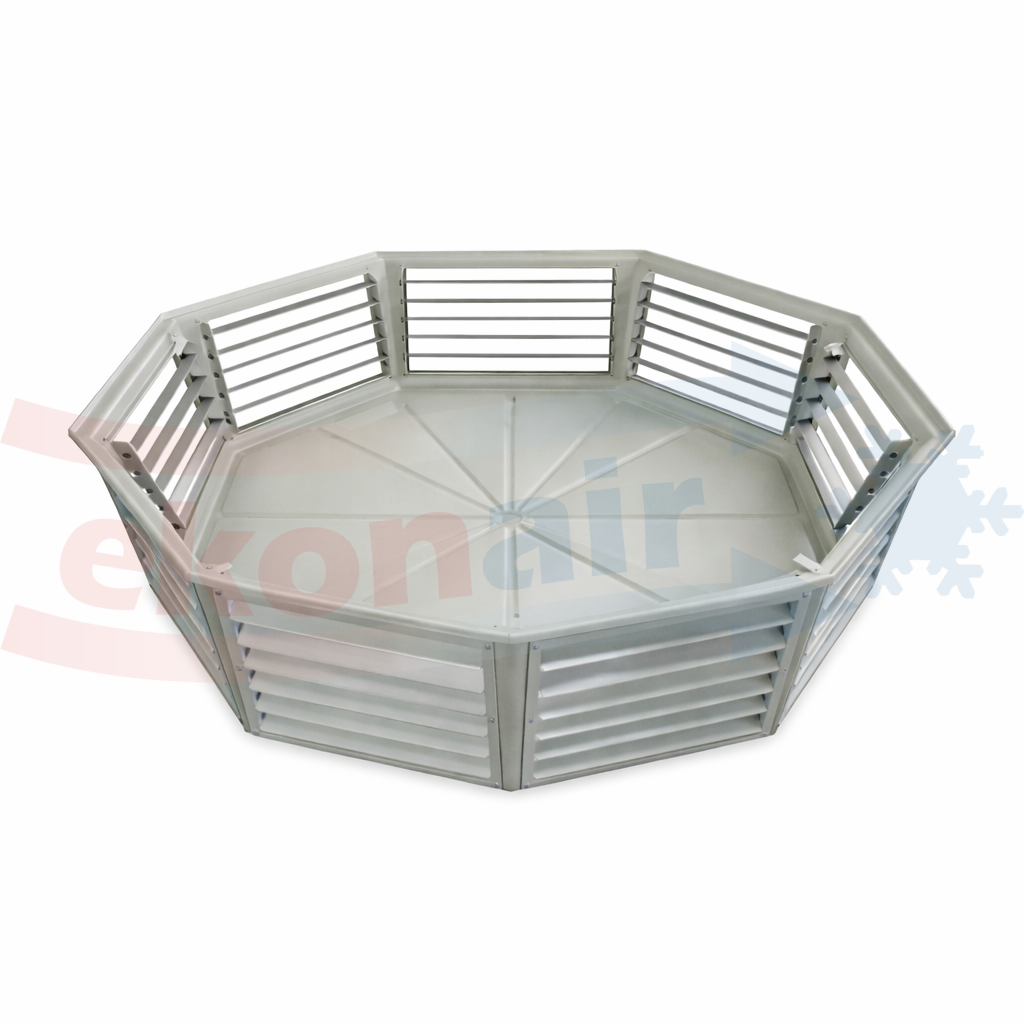

1. Air diffuser, air confusor (expansion chamber) with air outlet on 8 sides serves as the end element of the ventilation duct for air distribution in ventilation systems.
2. Confusor (expansion chamber) made of ABS plastic .
3. The confusor rim (frame) is made of galvanized sheet metal .
4. The shutter ( blade) is made of aluminum , the adjustment of the shutters in the confusor is set manually in order to direct the air streams .

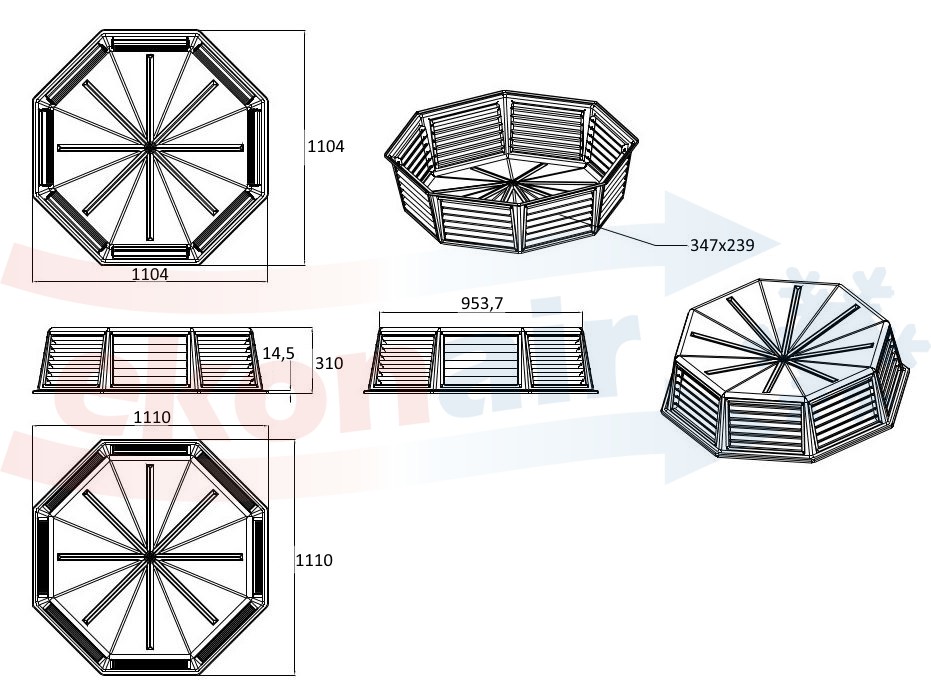

Dimensions of the outlet grille with shutters: 356 x 244 mm (8 pcs.)
Outer dimensions: 1110 x 1110 mm
Max. height: 310 mm
Color: ivory
Material: ABS plastic
