ESD-EC 630 round swirl diffuser
Regular price:
Regular price:
product unavailable
add to wish list
Description

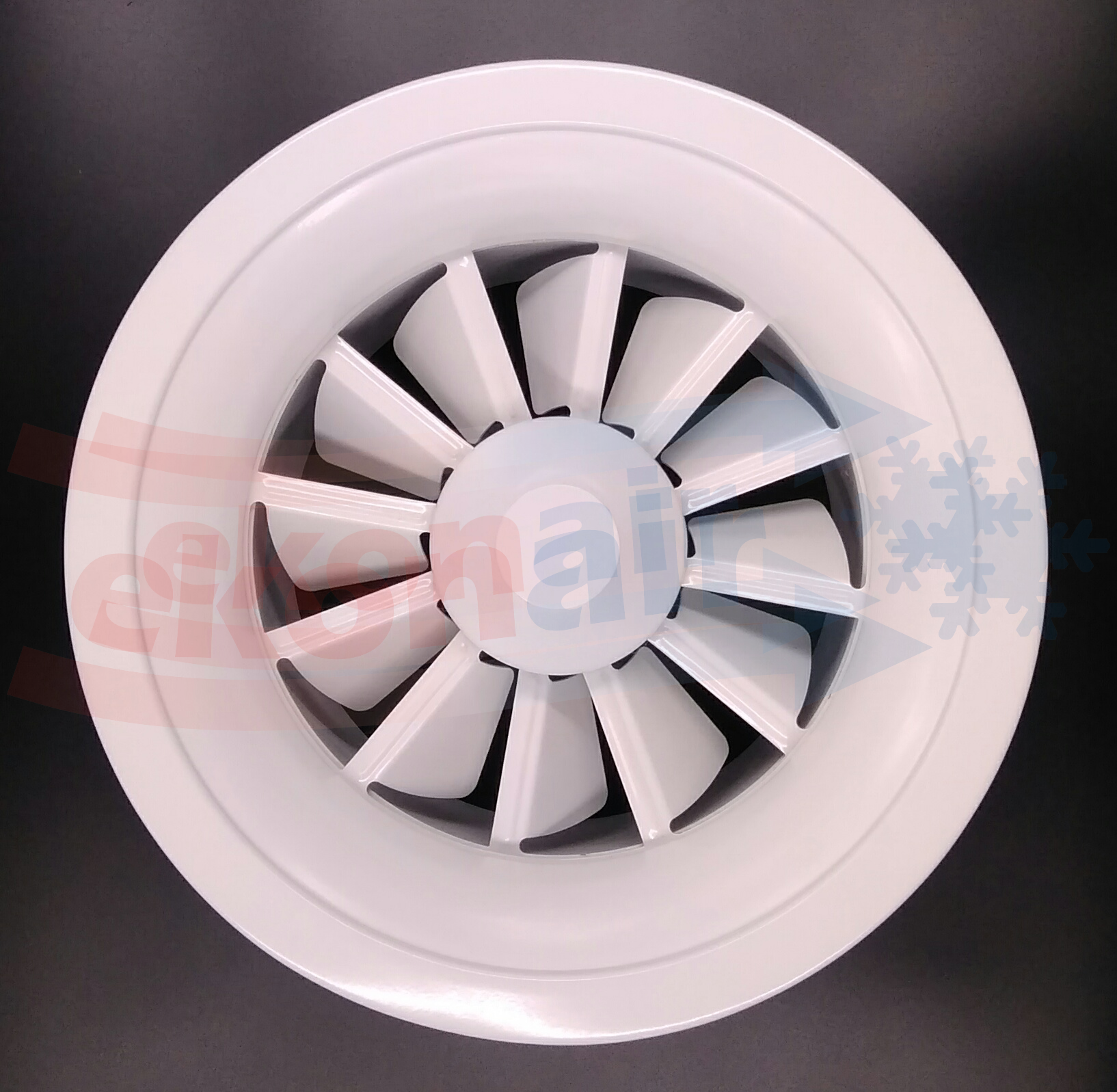

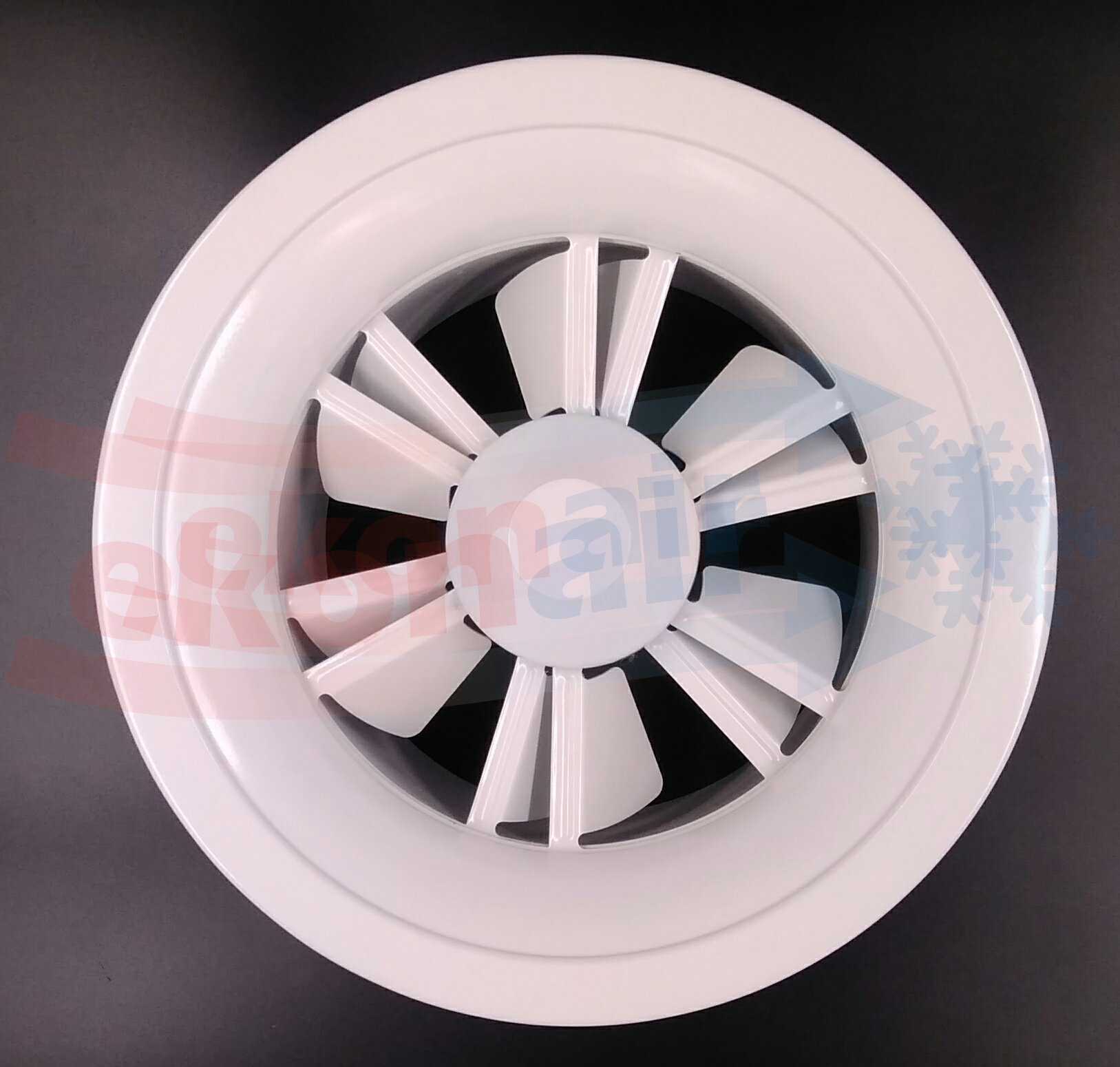

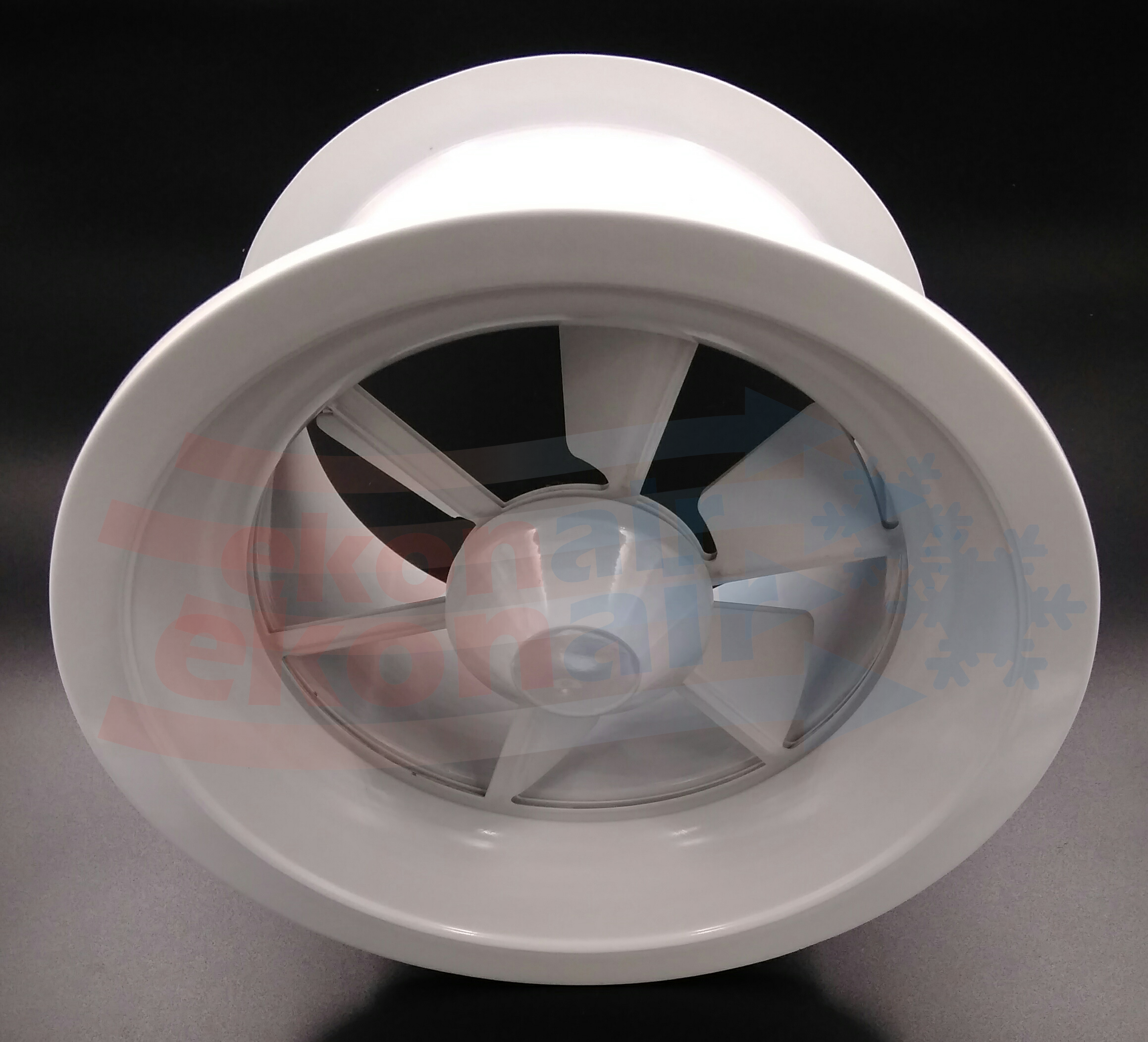

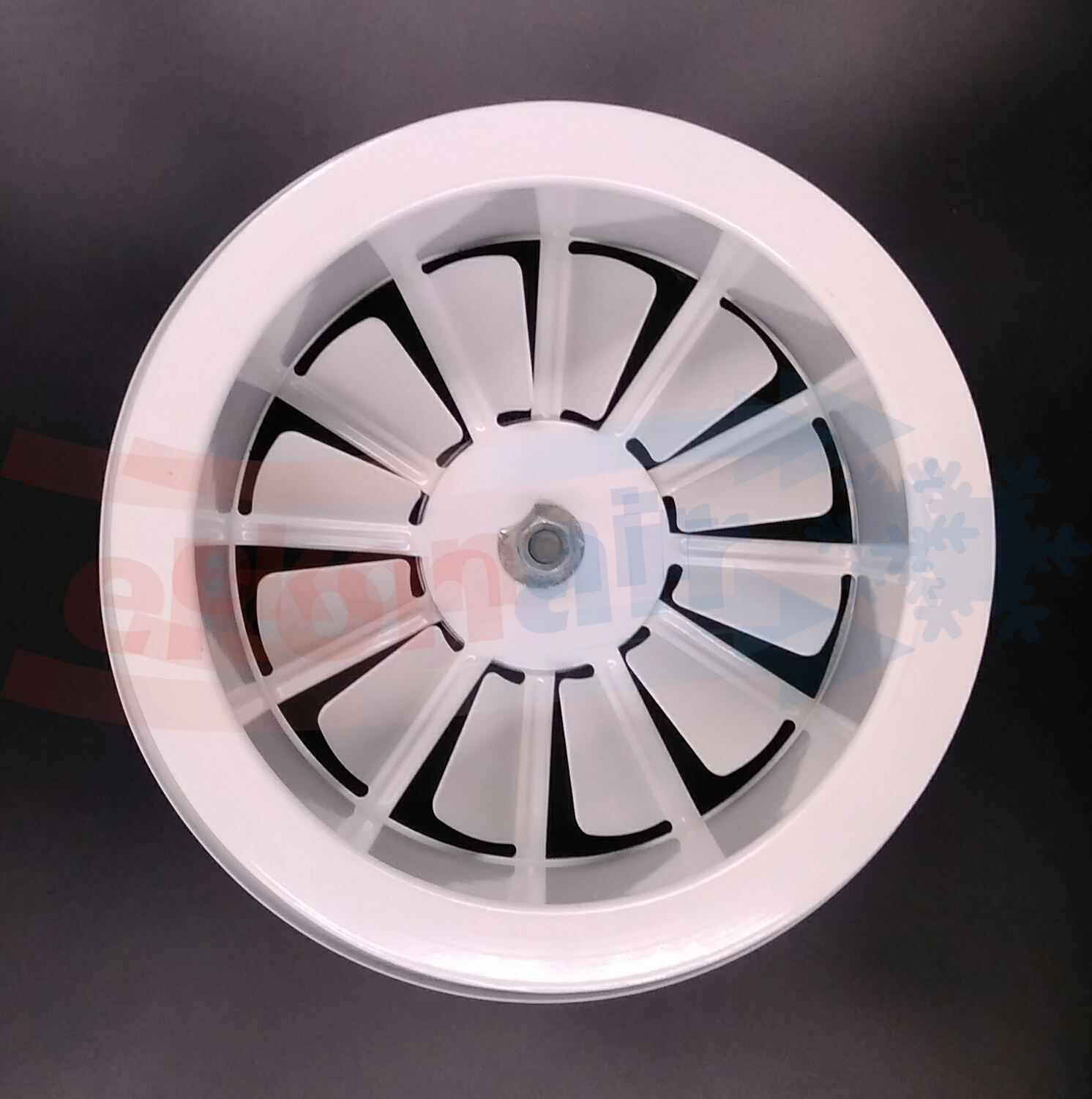

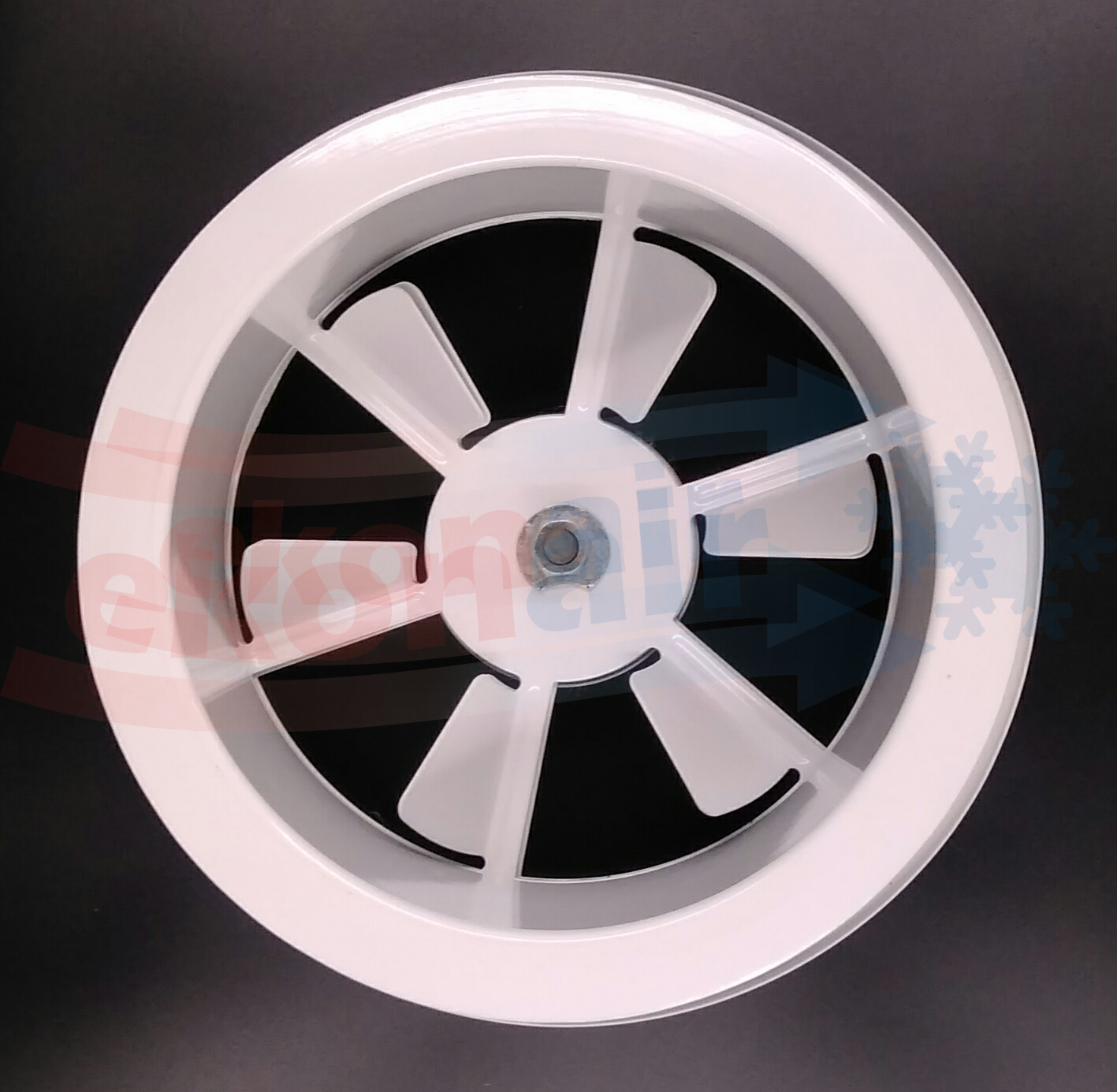

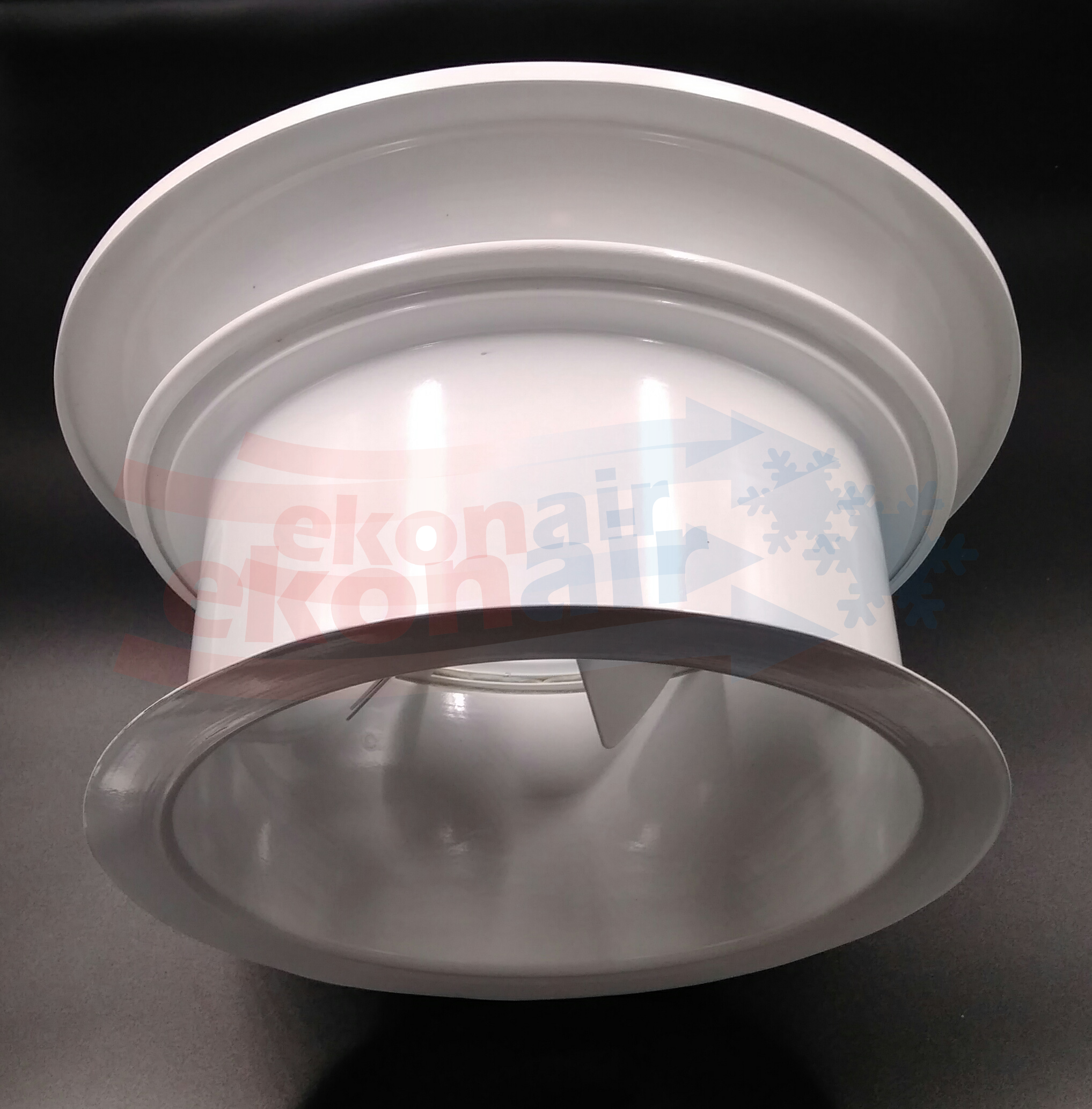

Circular swirl diffuser with adjustable directional blades.
- Circular swirl diffusers, used as diffusers in an air duct system.
- Perfect for large spaces with high air flow requirements.
- The louver distance can be adjusted for cooling or heating.
Optional accessories: Damper with transverse planes.
Material: Outlet flange and blades made of aluminum sheet.
Connection with a powder coated steel flange.
Finish: White Ral 9016 powder coating.

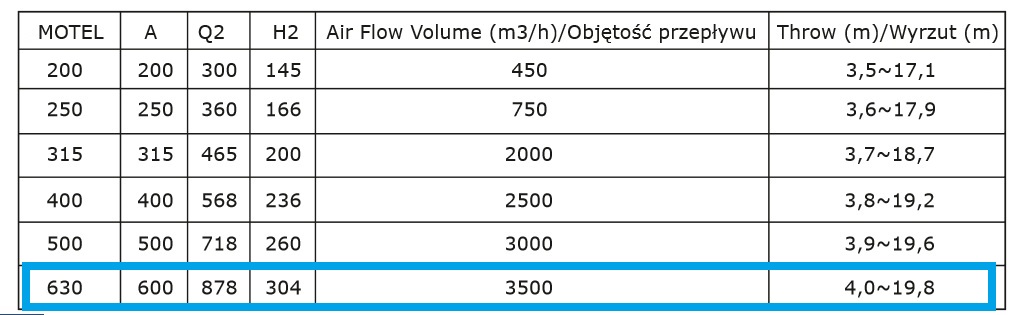

Flange dimensions:
Avg. inside: 620 mm
Avg. outer: 690 mm
