Fancoil KON 35 (after exhibition)

Availability: sold out
Gross price: €377.56

Regular price:

377.56
Net price: €306.96

Regular price:

quantity szt.

product unavailable

add to wish list
Rating: 0
Vendor: Ekonair
Product code: PCP_00629

Description

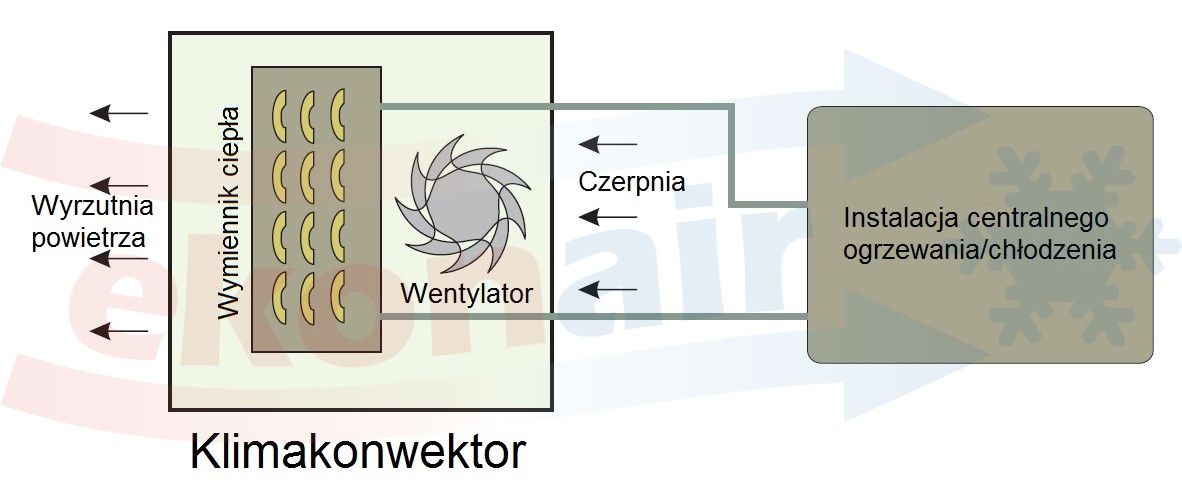

Fan coil units are active heating / cooling. The working medium is water, as in the case of radiators or underfloor heating. Thanks to the built-in fan, fan coil units heat with great power despite their small dimensions. The fan coil units can be operated with a supply water temperature of 35 - 70 ºC in heating mode and a supply water temperature of 5 ºC in cooling mode. However, it must be taken into account that different supply water temperatures will be associated with different heating / cooling capacity.

As standard, fan coil units are equipped with an electronic thermostat that maintains a constant temperature in the room. These devices work automatically, adjusting the rotational speed to the demand for cooling or heat. A wireless remote control is included in the wall-mounted units to ensure full comfort of use.



Fan coil functions:

a) If the water flowing through the fan coil is cool, it will cool the room;

b) If the water flowing through the fan coil is hot, it will heat the room;

c) Ventilation and internal air recirculation.



The device is characterized by a low level of generated noise, high efficiency, easy installation, reliability and energy efficiency.



Ekonair fan coil units will make your apartment and office quickly heated or cooled to the right temperature. Our devices are characterized by an extremely low level of noise emission without disturbing the effectiveness of the device.



The fan coil has:

- reliable transverse fan;

- accurate thermostat to ensure perfect thermal comfort;

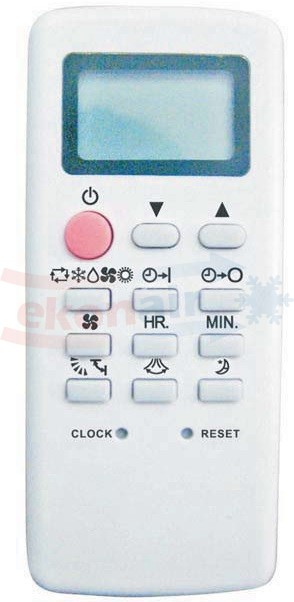

- wireless remote control that allows you to control the device from a distance;

- possibility to set day work at specific times;

- 3 fan speed settings;

- mode settings: ventilation, heating, cooling, drying;

- automatic vertical blinds to better distribute the air;

- manual horizontal blinds to direct the air to specific places;

- low electricity consumption;

- many other functions available in the manual.



Model





CON 35

Temperature of water



º C

5/60

7/50

9/45

Cooling power

W (High Speed)

IN

2025

1785

1510

M (Average turnover)

2010

1730

1470

N (low speed)

1990

1685

1460

Heating power

IN

IN

5160

4000

3440

Ś

5020

3920

3340

N

4890

3870

3100

Heat exchanger

Pipe diameter

mm

7

Żebra / Rzsze



17 Ż / 2 Rz

Rib height / width

mm

315 x 610

The front surface

m 2

0.092

Fan motor

Electrical power

IN

15

Type



Inductive asynchronous

Quantity



1

Fan

Fan speed

IN

RPM

1150

Ś

1000

N

800

Type




Transverse fan

Quantity



1

Air flow

Cooling

m 3 / h

650

Warming

750

Water flow

L / sec

0.076

Electric supply



230V / 50Hz / 1f

Electrical power

IN

35

Noise level (High speed)

dB (A)

35

Central heating pipes connection

Inch

3/8 "

Drain pipe connection

mm

13

Water pressure drop

kPa

40

Driver type



Wireless remote control

Bypass valve



Yes

Dimensions (Length x Depth x Height)

mm

890 x 280 x 210

Dimensions with packaging (L x D x H)

mm

950 x 345 x 260

Weight

kg

12

COMMENTS:

(1) Test conditions:

Cooling: water temperature 7 º C, room temperature DB / WB 24/17 º C;

Heating: water temperature 45 º C, room temperature DB / WB 21/15 º C.

(2) Water flow defined for a 5 ° C temperature difference in / out.

(3) Water temperature: 5/60 means water having a temperature of 5 ° C with cooling and 60 ° C during heating.

(4) The above specifications are subject to change without prior notice.
